8 Common Problems With Single Rotary Paper Cutting Machines And How To Fix Them
Introduction
In paper converting and printing production, the single rotary paper cutting machine, also known as a single rotary sheeter, is widely used by paper mills, printing plants, and paper converting companies because of its efficient and stable cutting performance.
However, as a paper cutting machine operates over long periods, mechanical wear, electrical aging, improper parameter settings, and paper tension problems can gradually affect production performance.
When operators encounter problems such as cutting length drift, inaccurate sheet squareness, unexpected machine shutdowns, paper wrinkles, or unstable paper tension, it is often difficult to identify the real cause quickly.
Cutting Length Varies by 3–5 mm and Sheet Dimensions Drift
the only place you'll find outside the home
Symptoms
Sheets cut from the same parent roll have inconsistent lengths. The cutting dimension gradually shifts during production, resulting in increased paper waste and unstable product quality.
Possible Causes
Cutting length deviation is usually not caused by a single component. Common causes include:
- The encoder has no reliable locking structure and gradually slips because of machine vibration.
- The synchronous belt has stretched and begins to slip.
- Communication interference in early-generation PLC systems causes pulse loss.
- Variable-frequency drive interference affects the PLC signal.
- Paper tension parameters are not properly matched to the paper weight and material.
Solutions
1. Remote troubleshooting
The service engineer can remotely recalibrate the cutting coefficient and check or tighten the encoder terminals. In many cases, production can be restored on the same day.
2. On‑site repairing
The service engineer can remotely recalibrate the cutting coefficient and check or tighten the encoder terminals. In many cases, production can be restored on the same day.
3. Long‑term upgrade
For older machines affected by communication interference, the control system can be upgraded to hard‑wired terminal control. This reduces electromagnetic interference from the variable‑frequency drive and helps prevent pulse loss.
Diagonal Error of 2–5 mm Causes Uneven and Non‑Square Sheets
Symptoms
The left and right sides of the finished sheets have different dimensions. The sheets are not square after cutting and may not meet the requirements of subsequent printing or packaging processes.
Possible Causes
Common causes include:
- The diagonal adjustment motor is not running at the correct speed.
- A worn potentiometer causes signal deviation.
- The adjustment screw has gradually deformed because of long-term lateral loading.
- Diagonal parameters have not been adjusted according to the paper grade and weight.
Solutions
1. Remote adjustment
The diagonal motor speed can be adjusted remotely, and the segmented diagonal correction parameters can be recalibrated.
2. On‑site maintenance
Worn potentiometers should be replaced. If the adjustment screw has become deformed, it should be replaced with a new one.
3. Automatic upgrade
For high‑speed paper sheeter machines, stable diagonal correction is important for maintaining sheet squareness and reducing downstream rejection.
Hydraulic Reel Stand Cylinder Leaks Oil and the Paper Roll Loses Clamping Force
Symptoms
Oil leaks from the outside of the hydraulic cylinder. The parent roll cannot maintain sufficient clamping force and may become loose during production, potentially causing a paper jam.
Possible Causes
Typical causes include:
Aging oil seals and O-rings caused by long-term high-pressure operation.
Internal sealing failure of the pressure-holding valve or solenoid valve.
Older hydraulic systems with less integrated oil circuits and weaker sealing structures.
Solutions
1. Short-term repair
Replace the complete set of oil seals and O-rings. Replace the solenoid valve and pressure-holding valve when required, then recalibrate the hydraulic pressure to the standard 140 bar setting.
2. Preventive maintenance
Carry out a comprehensive hydraulic system inspection and maintenance program every year.
For newer machine designs, an integrated hydraulic circuit can improve sealing performance and reduce the risk of oil leakage.
Stable hydraulic clamping is particularly important when processing large and heavy parent rolls on a paper cutting machine.
The Machine Stops Unexpectedly During Production and the Touchscreen Goes Black
Symptoms
The machine stops without an obvious alarm. After restarting, it may operate normally for a short period before stopping again.
Possible Causes
On early‑generation CHM‑1400 machines using communication‑based control, electromagnetic interference generated by the variable‑frequency drive may interrupt PLC signals.
Other possible causes include:
- Aging PLC hardware.
- Damaged PLC components.
- Loose electrical connections.
- Communication cable problems.
Solutions
1. Temporary troubleshooting
The service engineer can remotely reload the original PLC program and adjust interference-related parameters to help restore production.
2. Long-term control upgrade
The control system can be upgraded to hard-wired terminal control, together with a newer Siemens PLC where required.
This type of electrical upgrade can significantly improve control stability on older single rotary sheeter machines.
Thin Paper Wrinkles and Curls at the End of the Parent Roll
the only place you'll find outside the home
Symptoms
Thin paper develops large wrinkles or curls near the end of the roll. One side of the paper may lift or curl upward, resulting in a high rejection rate.
Possible Causes
Common causes include:
- Worn bearings on both sides of the anti-curl aluminum roller.
- Paper web deviation caused by uneven guide components.
- Paper tension parameters that are not optimized for thin paper.
- Uneven adjustment of the multi-stage edge guiding system.
Solutions
1. Remote optimization
Switch to a tension curve designed for thin paper and adjust the anti-curl parallelism parameters.
2. On-site maintenance
Replace worn anti-curl aluminum rollers and their supporting bearings.
3. Mechanical upgrade
Install wider and thicker anti-curl rubber rollers to improve paper flattening and reduce curl.
For thin copy paper and other lightweight materials, paper tension control and web flattening are critical to stable sheeting performance.

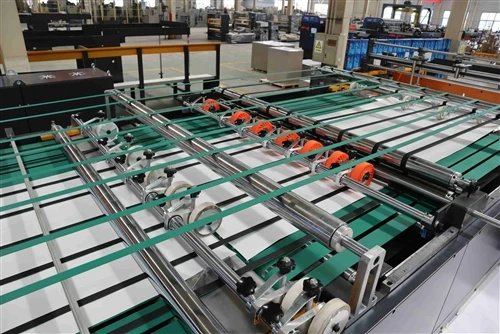

High-Speed and Low-Speed Belts Break Frequently
Symptoms
The machine's belts crack, wear, or move out of alignment within a short period. In some cases, belts may need to be replaced several times within three months, increasing maintenance costs.
Possible Causes
Common causes include:
- The motor pulley diameter on older machines is too small.
- The belt is subjected to excessive bending.
- High tensile loads accelerate belt fatigue.
- Sharp objects or debris damage the belt surface.
- Incorrect acceleration and deceleration parameters increase mechanical stress.
Solutions
1. Short-term repair
Replace the complete set of original high-speed and low-speed belts when excessive wear or aging is detected.
2. Long-term modification
Install larger motor pulleys and optimize the acceleration and deceleration parameters of the variable-frequency drive.
With the appropriate mechanical modification, belt service life can be significantly extended.
Regular inspection of paper cutting machine belts is an important part of preventive maintenance.
Cross-Cutting Knife Chipping, Excessive Paper Dust, and Incomplete Cutting
the only place you'll find outside the home
Symptoms
The cutting edge contains excessive burrs and paper fibers. Thick paper may not be completely cut, and the knife edge may develop chips.
Possible Causes
- The most common causes are:
- Long-term cutting wear.
- Incorrect knife selection for the paper grade.
- Using a brittle tungsten-carbide knife for applications outside its suitable material range.
Knife material and cutting conditions should always be selected according to the paper type, basis weight, production speed, and cutting system.
Solutions
1. Minor knife damage
If the knife edge has only minor damage, the knife surface may be reground. The knife clearance can then be adjusted according to the machine's specified operating condition.
2. Knife replacement
If the knife has severe chipping or cannot be restored through grinding, replace the complete cross-cutting knife set with a suitable cutting tool.
Correct knife selection is essential for maintaining paper cutting quality, reducing paper dust, and extending knife service life.
Multi-Point Brake Leakage Causes Unstable Unwinding Tension
Symptoms
Paper tension fluctuates during unwinding. The paper may alternate between being too loose and too tight, resulting in unstable cutting dimensions and poor sheet quality.
Possible Causes
Typical causes include:
- Aging O-rings in the pneumatic brake assembly.
- Loose pneumatic hose fittings caused by long-term vibration.
- Air leakage in the braking system.
Solution
A service engineer should inspect the complete pneumatic braking system, replace worn brake components and sealing rings, and tighten all pneumatic connections.
The brake system is a critical part of unwinding tension control. Stable braking force helps maintain consistent paper tension from the parent roll to the cutting section.
Preventive Maintenance for a Single Rotary Paper Cutting Machine
Many of the problems described above-including encoder slippage, belt wear, seal aging, knife wear, and brake leakage-are preventable maintenance issues rather than sudden failures.
A structured paper cutting machine maintenance program can help identify these problems before they cause unplanned downtime.
Operators and maintenance teams should regularly check:
- Encoder mounting and locking condition
- Synchronous and conveyor belt tension
- Cutting knife condition
- Hydraulic seals and O-rings
- Pneumatic brake condition
- Paper tension stability
- Guide roller and anti-curl roller alignment
- Electrical connections and PLC communication
- Machine vibration and abnormal noise
Preventive maintenance is particularly important for machines operating at high speed or for long production hours.
Regular inspection allows worn components to be replaced before they cause secondary damage, helping reduce production interruptions and extend the service life of the paper sheeter machine.
When Should You Contact a Paper Sheeter Service Engineer?
Operators can often solve simple parameter or adjustment problems themselves. However, problems involving PLC communication, encoder signals, hydraulic systems, knife shafts, transmission components, or repeated mechanical failures should be inspected by a qualified service engineer.
If the same problem continues after adjustment, replacing individual components repeatedly may only provide a temporary solution.
The better approach is to identify the root cause and determine whether the machine requires:
- Parameter adjustment
- Component replacement
- Mechanical repair
- Electrical troubleshooting
- Control system upgrade
- Preventive maintenance
- Complete machine inspection
For CHM equipment, customers can contact CHM service engineers for remote technical support or on-site service when the problem cannot be resolved through routine troubleshooting.
Conclusion
A single rotary paper cutting machine can provide stable and efficient production for many years when its mechanical, electrical, hydraulic, pneumatic, and paper-handling systems are properly maintained.
Problems such as cutting length drift, diagonal errors, hydraulic leakage, unexpected shutdowns, paper wrinkles, belt failure, knife chipping, and unstable unwinding tension should not be treated as isolated failures.
In many cases, the real cause is related to the interaction between paper tension, mechanical transmission, control systems, cutting components, and preventive maintenance.
By establishing a regular maintenance schedule and addressing the root cause of recurring problems, paper converters can reduce downtime, minimize paper waste, maintain cutting accuracy, and achieve more stable production.
If your paper cutting machine is experiencing repeated accuracy problems, unstable tension, unexpected shutdowns, or frequent component failures, professional technical inspection can help identify the real cause before a minor problem becomes a major production loss.
