about paper sheeter machine
CHM Machinery,the professional paper sheeter machine manufacturer and leading paper sheeting solution provider in China.
CHM's paper sheeter machine can directly cut jumbo rolls paper into flat paper, and is widely used in paper mills, printing plants, and paper processing plants.
CHM's paper sheeting machine is mainly divided into two categories, single rotary sheeter machine and double rotary sheeter machine.
what products we sell

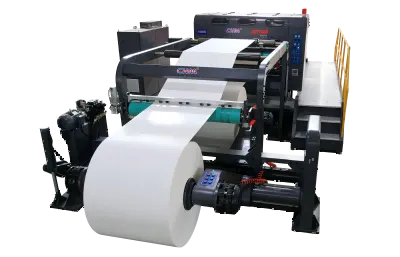

CHM Single Rotary Sheeter Machine
CHM's single rotary sheeter machine is suitable for cutting paper gram 60 to 550 grams. It adopts the cutting method of upper blade rotary cutting and lower blade fixed. It can cutting our thick paper and thin paper well.

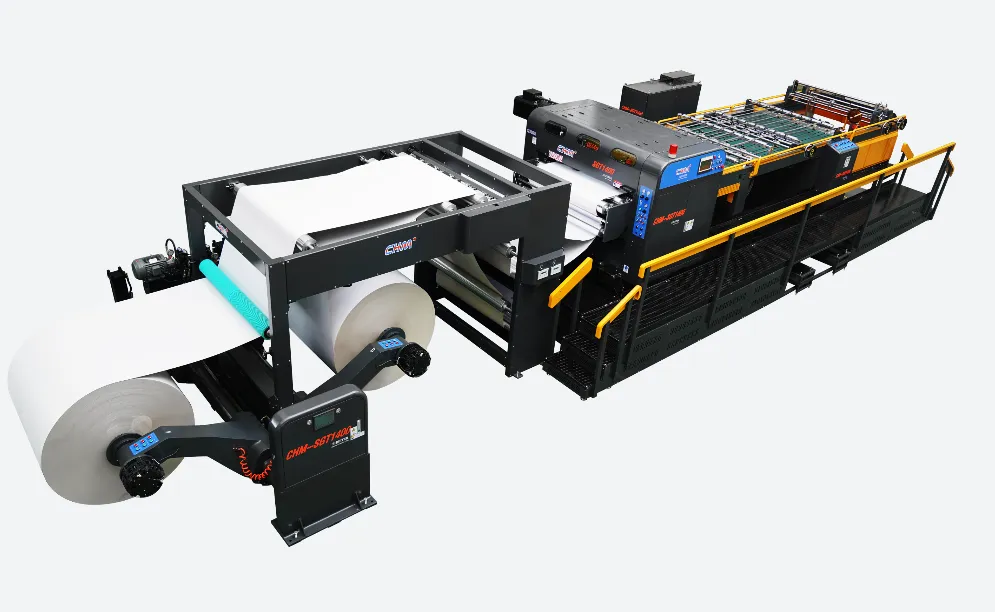

CHM Double Rotary Sheeter Machine
CHM's double rotary sheeter machine is suitable for cutting paper gram 200 to 1000 grams.CHM double rotary paper sheeter machine adopts advanced design of synchronized rotary which are driven directly by high power AC servo motor with high accuracy,high quality and clean cut.
|
Model |
CHM-SGT1400 |
CHM-SGT1700 |
CHM-SGT1900 |
|
1. Type of cutting |
Top blade and bottom blade rotary |
Top blade and bottom blade rotary |
Top blade and bottom blade rotary |
|
2. weight of paper |
200-1000 GSM |
200-1000 GSM |
200-1000 GSM |
|
reel diameter |
Max 1800mm(71") |
Max 1800mm(71") |
Max 1800mm(71") |
|
4. Finished width |
Max 1400mm(55") |
Max 1700mm(66.9") |
Max 1900mm(74.8") |
|
5. Finished sheet-Length |
Min.450-Max.1650 mm |
Min.450-Max.1650 mm |
Min.450-Max.1650 mm |
|
6. Num. of rolls cutting |
2 rolls |
2 rolls |
2 rolls |
|
7. Cutting accuracy |
±0.5mm |
±0.5mm |
±0.5mm |
|
8. Max. speed of cutting |
300cuts/min |
300cuts/min |
300cuts/min |
|
9. Max. cutting speed |
300m/min |
300m/min |
300m/min |
|
10. Requirement of the air pressure |
0.8MPa |
0.8MPa |
0.8MPa |
|
11. Voltage |
AC380V/220Vx50Hz |
AC380V/220Vx50Hz |
AC380V/220Vx50Hz |
|
12. Total power: |
88KW |
88KW |
90KW |
|
14. Output |
The real output depend on the material, and the weight of the paper, and right operate process |
The real output depend on the material, and the weight of the paper, and right operate process |
The real output depend on the material, and the weight of the paper, and right operate process |
hot selling machine model(please click)
CHM's paper sheeter machine can directly cut jumbo rolls paper into flat paper, and is widely used in paper mills, printing plants, and paper processing plants.
independent R&D ability and many patents
large production capacity and wide market share
pursuing the quality of honesty first forever
professional after-sale team,technology and team
Products application
paper mill
printing and packaging industry
paper dealers
how to choose single sheeter machine or double sheeter machine?
Watch the video of CHM-SGT1400/1700/1900 Sheeter
CHM Precision Paper Sheeter Machine drawing

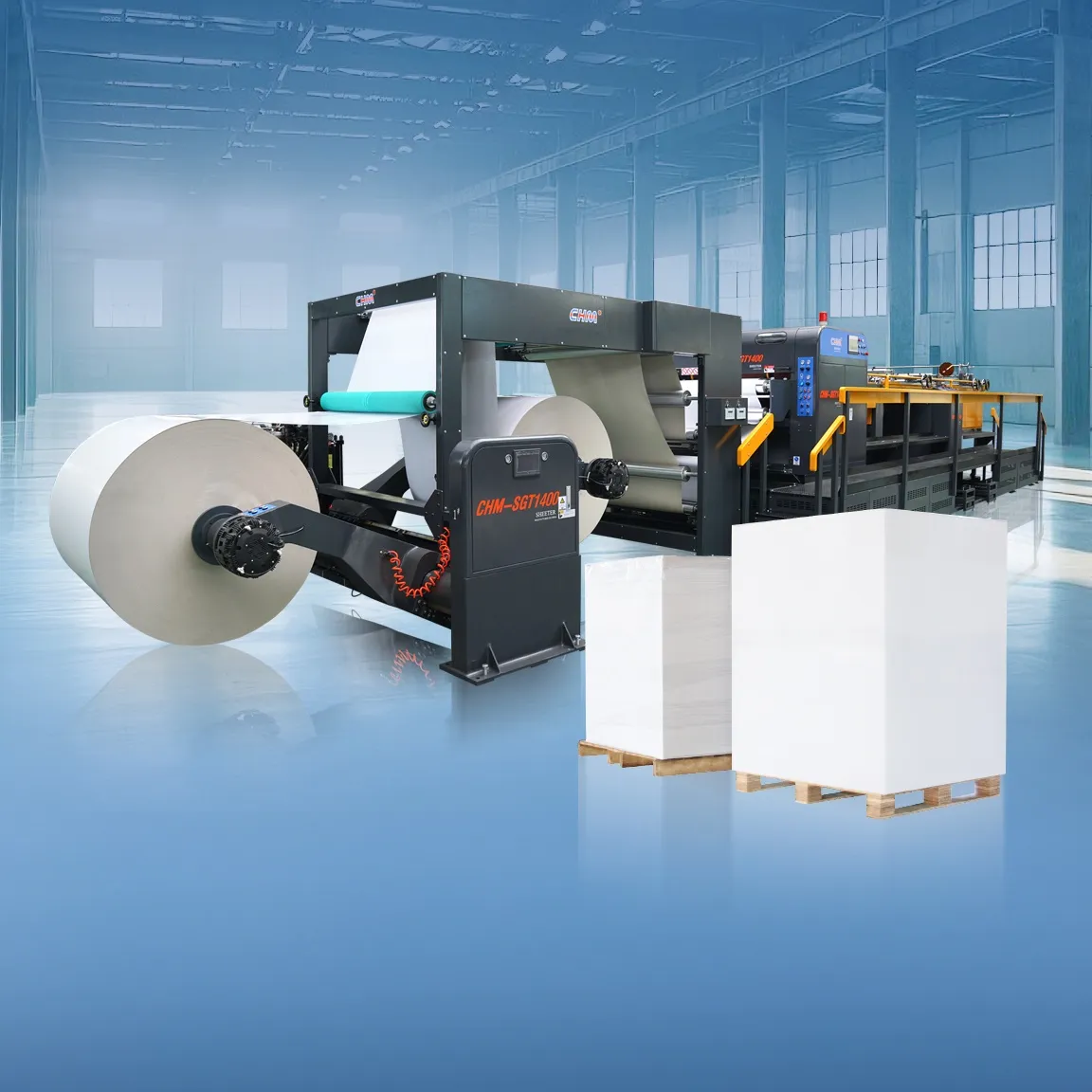

CHM-SGT1400 Double Rotary Sheeter Machine
CHM Introduction
CHM, Cheung Kong Machinery (HK) Co., Ltd., the professional sheeting machine manufacturer and the leading paper sheeting solution provider in China.
Since 2004, established in Hong Kong, CHM group keeps forwarding with the idea of insists on a client-centric and innovation. CHM has becóme the leader of the paper sheeting machinery producer in China.
Owns the highest number of patent in the industrial. We are well-known as the "standard setter". With our solid technological capabilities, we have nurtured numerous professionals in the field. And now having the highest production capabilities in China. Moreover, the international standard after-sales technical team providing state-of-the-art services to our clients, receiving all-rounded recognitions among our Chinese and global clientele,
Nowadays, CHM has become the flagship enterprise in the Chinese sheeting machinery industrial and expanding towards the international market.
CHM's Three Major Factories
professional engineer and after-sale service team
Our engineers are at the machine installation site
