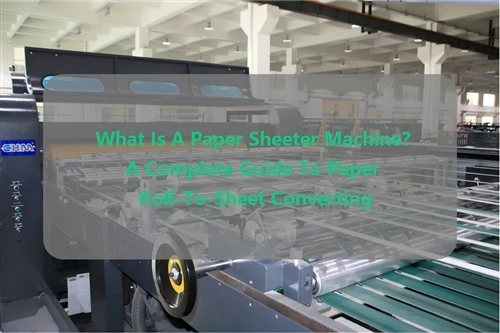

What Is A Paper Sheeter Machine?
What Is a Paper Sheeter Machine? A Complete Guide to Paper Roll-to-Sheet Converting
A paper sheeter machine is industrial equipment used to convert large paper rolls into flat sheets of a specified length and width.
Instead of cutting individual sheets manually, a paper sheeter continuously feeds paper from a parent roll, controls the web tension and alignment, cuts the paper to the required size, and delivers the finished sheets for stacking or further processing.
This makes the paper sheeter machine an important part of modern paper converting operations.
What Does a Paper Sheeter Machine Do?
The basic function of a paper sheeter is simple:
Parent Roll → Web Feeding → Alignment → Cutting → Conveying → Stacking
A large paper roll is first mounted on the unwinding section. The paper web is then fed through the machine at a controlled speed.
Before cutting, the paper needs to remain properly aligned and flat. Edge guiding and anti-curl systems help stabilize the web.
The cutter then cuts the continuously moving paper web into sheets according to the preset cutting length.
After cutting, the sheets are conveyed and collected into an orderly stack.
The finished sheets can then be sent to packaging, printing, converting, or other downstream processes.
Main Components of a Paper Sheeter Machine
Although machine configurations vary according to application, a typical paper sheeting machine includes several key sections.
Unwinding Section
The unwinding system supports the parent roll and continuously supplies paper to the sheeter.
A stable unwinding system is important because fluctuations in web tension can affect cutting accuracy and sheet quality.
01
Web Guiding System
The paper must remain correctly positioned before reaching the cutter.
An automatic edge guide system helps correct lateral web movement and keeps the paper properly aligned.
02
Anti-Curl System
Paper rolls can develop curl after being unwound because of internal stresses in the material.
An anti-curl system helps flatten the paper before it reaches the cutting section.
This is particularly important when processing materials that are more sensitive to curl.
03
Cutter Section
The cutter is the core component of a paper sheeter.
Different cutter configurations are available for different paper weights and applications.
A Single-Rotary Paper Sheeter uses a rotating upper knife and a fixed lower knife.
A Double-Rotary Paper Sheeter uses synchronously rotating upper and lower knives to perform a shearing cut.
The appropriate cutter configuration depends on the paper weight, required cutting quality, sheet length, and production requirements.
04
Delivery and Stacking Section
After cutting, the sheets must be transported smoothly and stacked accurately.
The delivery system controls the movement of the sheets and helps form a neat, stable stack for subsequent processing.
05
Single-Rotary vs. Double-Rotary Paper Sheeter
One of the most important decisions when selecting a paper sheeter is the cutter configuration.
A Single-Rotary Paper Sheeter is commonly used for printing paper, office paper, coated paper, and other light- to medium-weight materials.
A Double-Rotary Paper Sheeter is particularly suitable for heavier paper and paperboard where clean cutting edges and stable processing are important.
The main difference is the cutting principle.
Single-Rotary:
Upper knife rotates + lower knife fixed
→ Flying-cutting process
Double-Rotary:
Upper and lower knives rotate synchronously
→ Shearing cutting process
Double-Rotary technology can provide cleaner cutting edges and is especially useful for applications where paper fiber and cutting-edge quality are critical.
What Materials Can a Paper Sheeter Process?
Depending on the machine configuration, paper sheeters can be used for a wide range of materials, including:
- Printing paper
- Copy paper
- Coated paper
- Kraft paper
- Offset paper
- Cardstock
- White cardboard
- Paperboard
- Packaging paper
The suitable material range depends on the machine's maximum web width, paper weight, cutting length, roll diameter, and cutter configuration.
Therefore, machine selection should always be based on the actual materials that the factory plans to process.
Why Do Factories Use Paper Sheeter Machines?
The main reason is not simply cutting speed.
A modern paper sheeter integrates several operations into a continuous production process.
Compared with manual or separate cutting operations, an automated sheeting system can help manufacturers achieve:
- More consistent sheet dimensions
- Higher production efficiency
- Reduced manual handling
- Better material utilization
- More stable production
- Easier integration with downstream equipment
For high-volume paper converting operations, these advantages can have a direct impact on production costs and overall productivity.
How to Choose the Right Paper Sheeter Machine
There is no single paper sheeter that is suitable for every factory.
Before purchasing equipment, manufacturers should consider several key factors.
Paper Weight
Determine the minimum and maximum GSM that the machine needs to process.
A machine designed primarily for lightweight paper may not be suitable for heavy paperboard.
Cutting Quality
If the finished sheets will go directly into printing or packaging processes, cutting-edge quality and dimensional accuracy become especially important.
Future Production Requirements
A machine should not only satisfy today's orders.
If the factory expects to process heavier materials, wider rolls, or larger production volumes in the future, these requirements should be considered before purchasing the equipment.
Paper Sheeter Machine for Different Industries
Paper sheeting equipment is used in many different industries.
Printing plants use sheeters to prepare paper for offset and other printing processes.
Packaging factories use them to process kraft paper, coated board, and other packaging materials.
Paper converting companies use sheeters to convert parent rolls into standardized commercial sheet sizes.
Office paper manufacturers use specialized sheeting and packaging systems to produce products such as A4 copy paper.
In each application, the machine configuration needs to match the material and final product requirements.
Paper Sheeting Is More Than Cutting Paper
A paper sheeter machine may appear to be a simple cutting machine, but stable roll-to-sheet production depends on the coordination of multiple systems.
Unwinding, web tension, edge guiding, anti-curl control, cutter synchronization, conveying, and stacking all influence the final result.
This is why machine selection should focus not only on the cutter itself, but on the complete paper converting system.
Conclusion
A paper sheeter machine converts large parent rolls into accurately cut sheets through a continuous and automated process.
From unwinding and web guiding to cutting, conveying, and stacking, every section contributes to the final production performance.
For factories processing large volumes of paper, choosing the right sheeting technology can improve production efficiency, cutting consistency, and overall operating performance.
The most suitable solution depends on the paper weight, roll width, sheet size, required output, cutting quality, and future production plans.
For this reason, the right paper sheeter is not simply the fastest machine-it is the machine that best matches the factory's complete production requirements.
