Why Is Short Sheet Cutting More Demanding? How CHM Sheeters Handle It

Short sheet cutting may look simple, but it can place higher demands on a paper sheeter than longer sheet production.

When the web runs at the same meter speed, a shorter sheet length means the cutter must complete more cutting cycles per minute. This increases the demand on the cutting system, drive system, web handling, and overall machine stability.

For paper converters processing different sheet sizes, understanding this relationship is important when selecting a paper sheeter.

Consider a paper sheeter running at 300 m/min.

With a 1,000 mm cutting length, the theoretical cutting frequency is about 300 sheets/min.

With a 500 mm cutting length, the same web speed requires approximately 600 cutting cycles per minute.

This means that reducing sheet length can significantly increase the workload on the cutter and control system.

Therefore, maximum meter speed alone does not tell the whole story. The machine must also maintain stable cutting performance at the required cutting frequency.

At higher cutting frequencies, small mechanical or control problems can become more obvious.

Typical problems include:

• Cutting length variation
• Uneven sheet edges
• Poor sheet squareness
• Increased vibration
• Unstable stacking
• More production interruptions

This is why short-sheet applications require not only a high-speed drive, but also a well-coordinated cutting and conveying system.

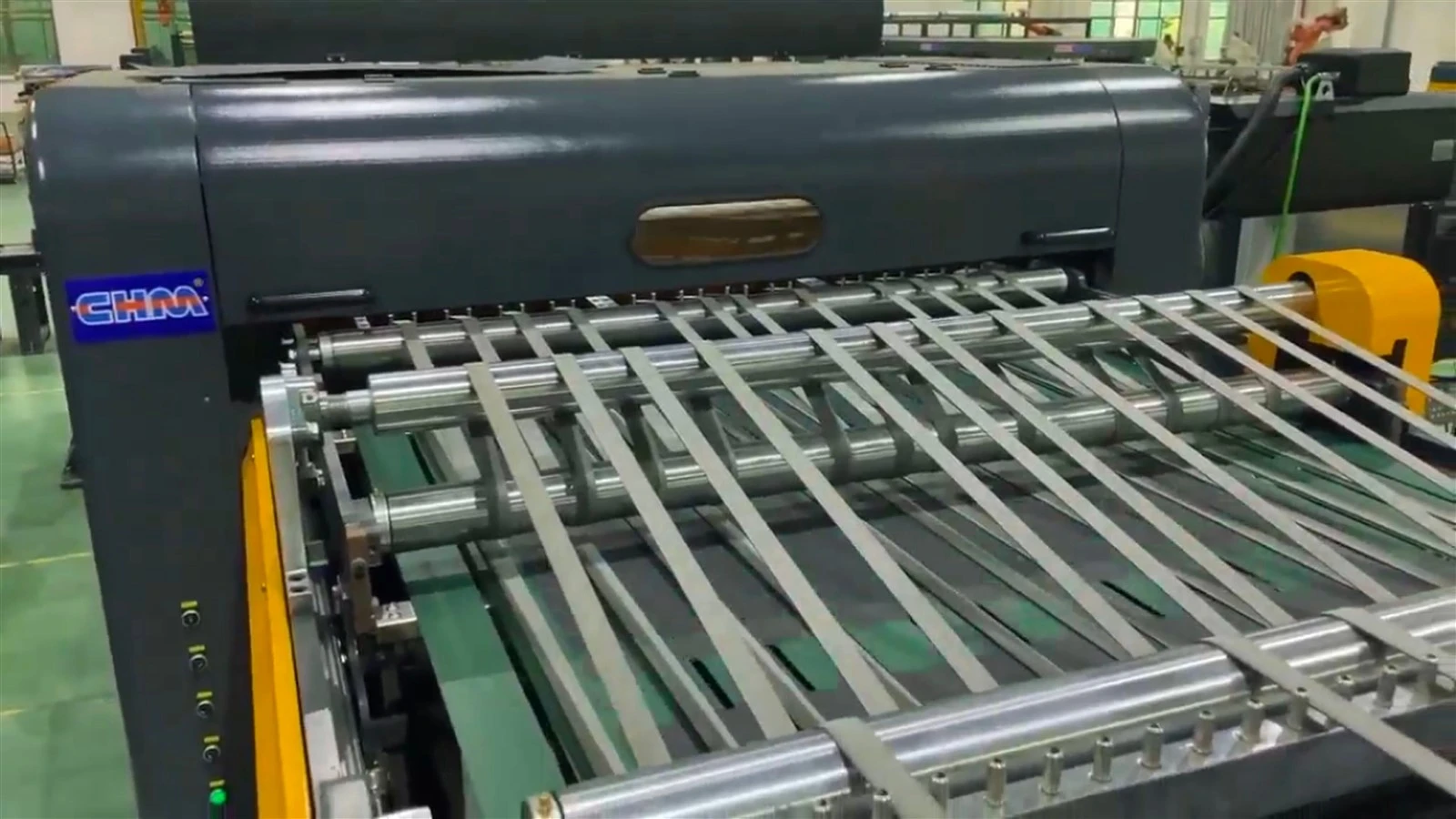

CHM offers both Single-Rotary and Double-Rotary Paper Sheeters for different production requirements.

The CHM-1400/1700/1900 Single-Rotary series uses a rotating upper knife and fixed lower knife. It handles approximately 60–550 GSM paper, with cutting lengths from 450 to 1650 mm and maximum meter speeds of 300 m/min, depending on configuration.

For heavier materials, the CHM-SGT1400/1700/1900 Double-Rotary series uses synchronously rotating upper and lower knives. It is designed for approximately 200–1000 GSM materials and also supports cutting lengths from 450 to 1650 mm and speeds up to 300 m/min.

The Double-Rotary structure provides a synchronized shearing action, making it particularly suitable for heavy paper and board where clean cutting edges are important.

When choosing a sheeter for short-sheet production, do not look at speed alone.

Consider:

• Required sheet length
• Paper GSM
• Cutting frequency
• Cutting accuracy
• Web tension stability
• Edge guiding
• Anti-curl performance
• Stacking requirements
• Expected production volume

A machine should be selected according to the complete production process rather than one individual specification.

Short sheet production is commonly found in applications such as:

• Office and copy paper
• Commercial printing
• Digital printing
• Packaging materials
• Specialty paper
• Cut-size paper products

Different materials may require different cutter configurations and web-handling systems.

FAQ





01.Does shorter sheet length always mean lower production?

Not necessarily. A suitable sheeter can maintain high production efficiency, but the required cutting frequency increases as sheet length decreases.

02.Is meter speed the only important specification?

No. Cutting frequency, machine stability, material characteristics, and stacking performance are equally important.

03.Should I choose Single-Rotary or Double-Rotary?

It depends mainly on the paper weight, material characteristics, cutting quality, and production requirements.

Short-sheet production puts greater demands on the complete sheeting system because the cutter must operate more frequently at the same web speed.

The right solution is therefore not simply the machine with the highest rated speed. It is a sheeter that can maintain stable cutting, accurate dimensions, reliable web handling, and consistent stacking under the required production conditions.

CHM Machinery provides both Single-Rotary and Double-Rotary Paper Sheeter solutions, allowing manufacturers to select the appropriate configuration according to their paper, sheet size, and production requirements.
