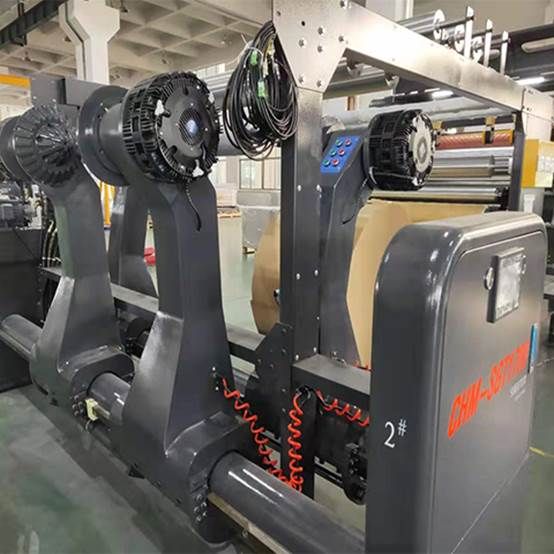

Double Rotary Knife Printing Paper Cutter

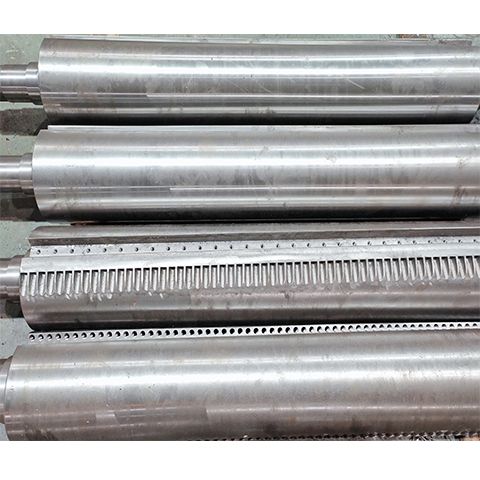

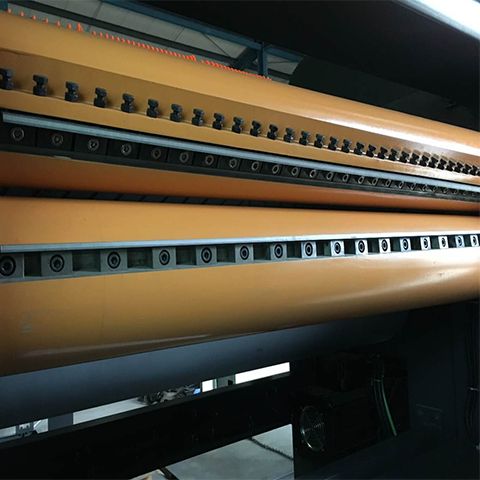

CHM-SGT series twin knife sheeter adopts advanced design of twin rotary knife cylinders which are driven directly by high power AC servo motor with high accuracy and clean cut. The touch screen controls work in conjunction with a Siemens PLC.









Model	CHM-SGT1400
1. Type of cutting	Top blade and bottom blade rotary
2. Weight of paper	200-1000 GSM
3. Reel diameter	Max 1800mm(71")
4. Finished width	Max 1400mm(55")
5. Finished sheet-Length	Min.450-Max.1650 mm
6. Num. of rolls cutting	2 rolls
7. Cutting accuracy	±0.5mm
8. Max. speed of cutting	300cuts/min
9. Max. cutting speed	300m/min
10. Requirement of the air pressure	0.8MPa
11. Voltage	AC380V/220Vx50Hz
12. Total power	88KW
14. Output	The real output depend on the material, and the weight of the paper, and right operate process

















We have professional after-sale service team,they can remotely guide customers to solve machine problems. We will provide operation manual books.









1.What is the development history of your company?

CHM Machinery is a manufacturer specializing in pre-press equipment - paper sheeting machines. Since established in 2004, it has always focused on and persisted in providing customers with the best products and services. After more than 20 years of development, it has a high reputation in the industry.



2.Why choose our products?

Our products have a high cost performance, good quality, and the performance and stability are guaranteed. Secondly, we are specialized in making slitters.



3.What after-sales services can you provide?

Professional manual, remote monitoring, after-sales service hotline,Training on knowledge such as on-site installation and commissioning, maintenance and operation, etc.
