Synchro-fly Sheeter Machine

CHM-SGT series synchro-fly sheeter adopts advanced design of twin helical knife cylinders which are driven directly by high power AC servo motor with high accuracy and clean cut. CHM-SGT was widely used for cutting board, kraft paper, art paper, duplex and so on.The incision of the slit paper is very neat and clean, without any paper fuzz. It is convenient for direct printing.









Model	CHM-SGT1400/1700 synchro-fly sheeter
1. Type of cutting	Top blade and bottom blade rotary
2. Weight of paper	200-1000 GSM
3. Reel diameter	Max 1800mm(71")
4. Finished width	Max 1700mm(66.9")
5. Finished sheet-Length	Min.450-Max.1650 mm
6. Num. of rolls cutting	2 rolls
7. Cutting accuracy	±0.5mm
8. Max. speed of cutting	300cuts/min
9. Max. cutting speed	3000m/min
10. Requirement of the air pressure	0.8MPa





High speed encoder: calculate accurately and rapidly the distance of the cursor.

Cursor function server: cursor function, can cut color code more accurately.

Cursor sensor : Detecting the color of the cursor, width and distance.

Cursor sensor bracket: positioning and tracking.

Cutter head reference sensor: collect the cursor distance, cutting knife, paper cutting pulse signal pulse and data processing.







1.This type of double rotary sheeter machine is specially developed for thick paper. The upper and lower knives rotate and cut. The maximum speed is 300m/min. The grammage range for slitting is 100 - 1000g.

2.The paper slit out has no paper fuzz and is very clean. It can be directly used on the printing machine, reducing secondary processing and costs. Therefore, it is being adopted by more and more users.

3.It can realize simultaneous slitting of multiple rolls, improve work efficiency, increase production capacity, and well meet the production capacity requirements of customers.

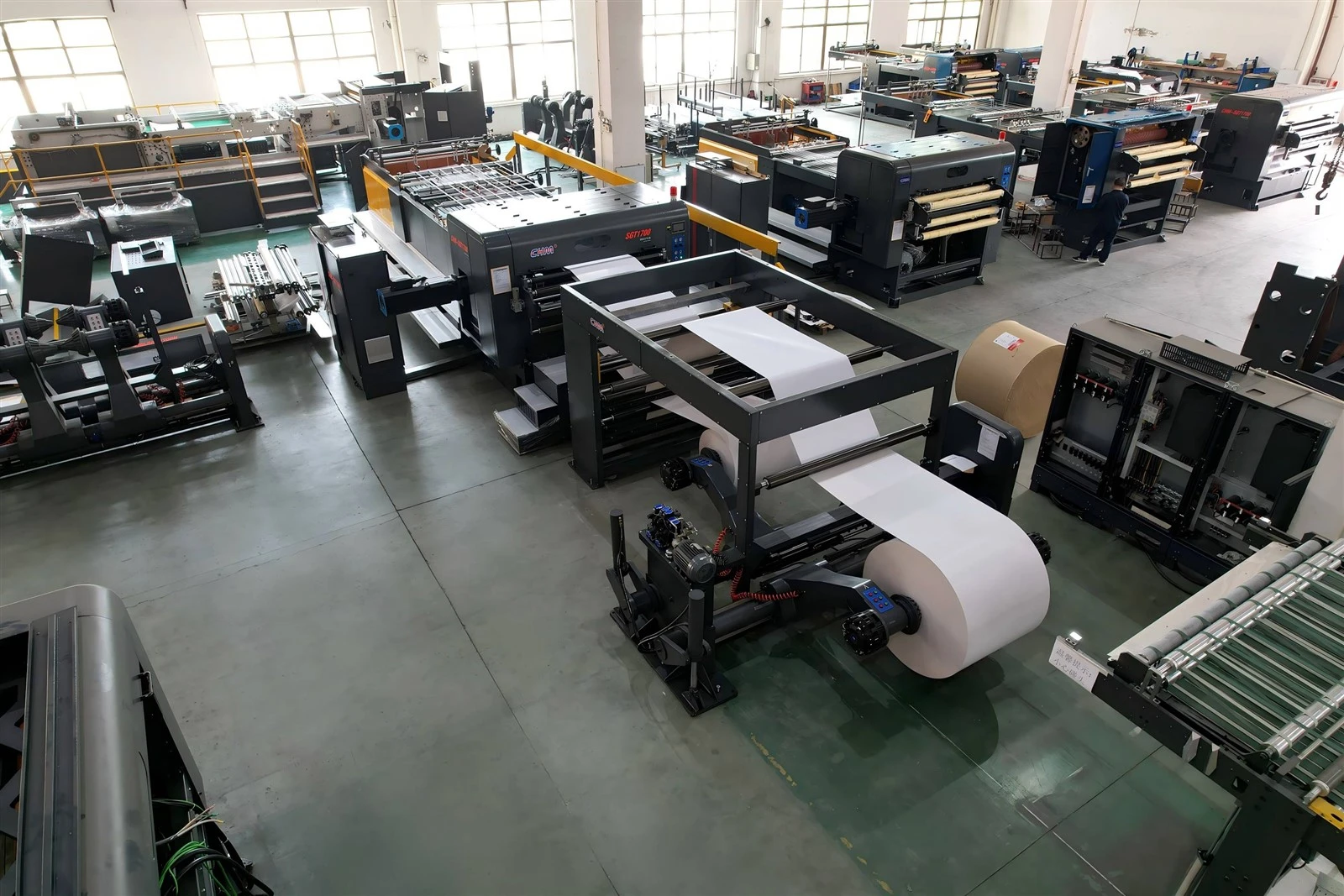

1.The three factories in Guangdong, Shandong and Jiangsu have a total area of nearly 140,000 square meters, becoming the world's second largest sheeting machine manufacturer with independent production capacity;

2.Large production capacity and wide market share;

3.The most professional counterparts in the country, with independent research and development, innovation ability, is the national Slitter standard setter- we are professional, dedicated;

4.Pursuing the quality of "honesty first" forever;

5.We have a professional technical and after-sales service team; we always provide"whole life cycle service" for the equipment; we provide solutions for equipment upgrading, maintenance, paper processing, post press processing, printing industry peripheral equipment, and provide high-quality services for different brands of equipment.



Certificate&Honor



Customer coverage



Professional teams









1.What is the biggest difference between the double rotary sheeter and the single rotary sheeter?

The types and methods of paper cutting are different, and the effects after cutting will also be different; the costs also vary.



2.How do you solve the paper curling problem?

We are equipped with an electric anti-curl unit. It can solve the warping of high-grammage paper when cutting to the core of the roll and can well alleviate the curling problem of the paper roll.



3.What are the advantages of this machine of yours?

The maximum paper cutting width of the machine ranges from 1400mm to 1700mm. Both thick and thin paper can be effectively slit, and it has strong stability.



4.What is the horizontal cutting principle of SGT series paper sheeter machine?

The model machine has two blades,one blade installed in upper casting blade holder and another one installed in the bottom holder. Servo motor drive upper and bottom casting holders rotate to cut paper web into length sheets. Upper and bottom holder are connected by gear.
