CHM A3&A4 Cut Size Sheeting And Packing Equipment

CHM A3&A4 Cut Size Sheeting And Packing Equipment

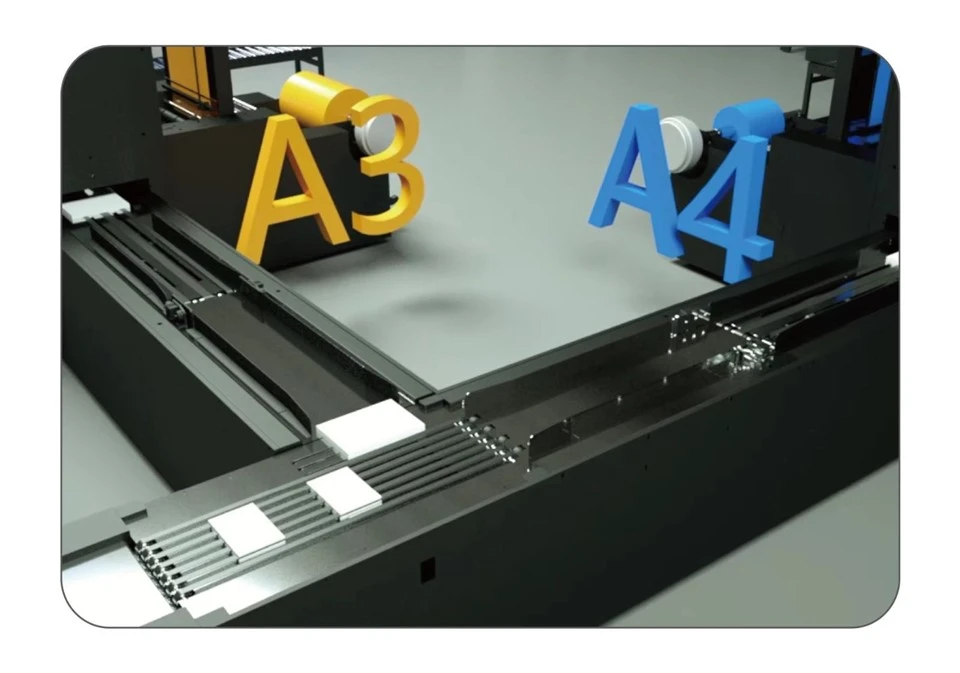

This machine is a customized model of CHM, which can cut and pack A3 and A4 sizes at the same time. This machine is equipped with two packaging machines, cutting for packaging A3 and A4 size papers. This machine has high output and good cutting effect, which can well meet customers' needs for cutting in multiple sizes and high output.

Send Inquiry

Product Introduction

how to contact with us?

Email: chm007@szchm.com

Wechat/Phone/WhatsApp:＋8617371066702

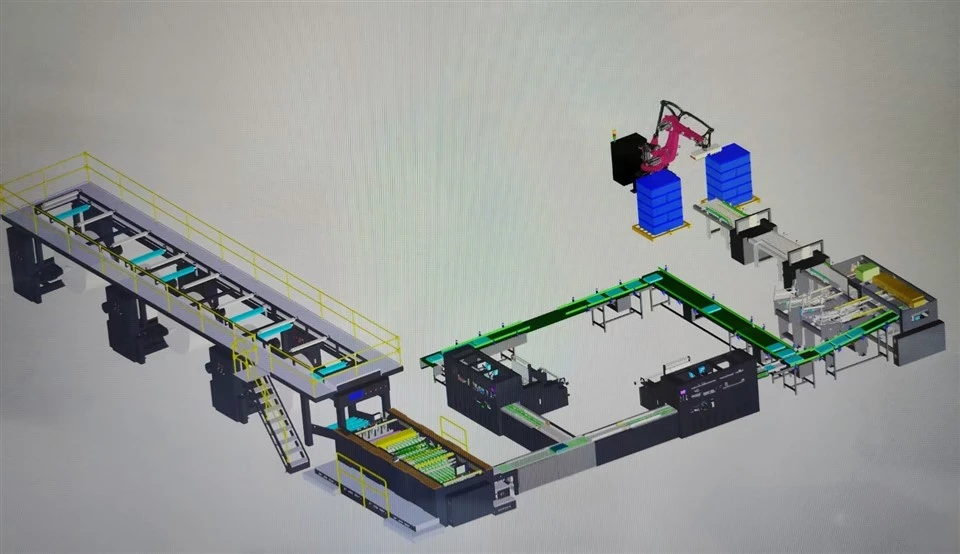

the introduction of whole production line

The whole process of entire production line

It includs four parts

Paper Cutting

Ream Packaging

Box Wrapping

Stacking Robot

image example

202507221126331

Machine videos Display

CHM A3&A4 cut size sheeting and packaging production line videos

CHM A3&A4 cut size sheeting and packaging production line customer site

technical parameter

Paper cutting part

Paper Width	Gross width 850mm, net width 840mm
Cutting numbers	4 cutting-A4 210mm (width)
Paper roll's diameter	Max.Ф1500mm. Min.Ф600mm
Paper core's diameter	3"(76.2mm)or 6"(152.4mm) or according to the clients' demand
Packing Paper grade	High-grade copy paper; High-grade office paper; High grade Free Wood paper etc.
Paper weight	60-100g/m²
Sheet length	297mm (specially design for A4 paper, the cutting length is 297mm)
Ream amount	500 sheets Max. Height: 45-55mm
Production speed	Max 0-250m/min (depends on different paper quality)
Max. Numbers of cutting	841/min
Output of the ream	34 reams/min
Load of cutting	500g/m² (5×100g/m²)
Cutting accuracy	±0.2mm
Cutting condition	No variation of the speed, no break, cut all the paper at one time and need the eligible paper.
Main power supply	3*380V /50HZ
Voltage	220V AC /24V DC
Power	34KW
Air consumption	300NL/min
Air pressure	6 bar
Edge cutting	2×10mm
Safety standard	Design according the safety standard of China

ream wrapping part

CHM-A4B Wrapping Machine

Paper Width	Gross width:310mm ;net width :297mm
Ream packing high	Max 55mm ; Min 45mm
Packing roll dia	Max.1000 mm ; Min.200mm
Packing roll width	560mm
Packing sheets weight	70-100g/m²
Packing sheets grade	high-grade copy paper, high-grade office paper, high-grade offset paper etc.
Design speed	Max 50 reams/min
Operation Speed	Max 35 reams/min
Packing condition	no speed variations, no breaks, cut all the paper at one time and qualified packing paper.
Driving	AC Servo Driving
Main power supply	3*380V /50HZ( or as required)
Voltage	220V AC /24V DC (or as required)
Power	18KW
Compressing air consumption	300NL/min
Air pressure	6bar

CHM-A4B Wrapping Machine

Paper Width	Gross width:430mm ;net width :420mm
Ream packing high	Max 55mm ; Min 45mm
Packing roll dia.	Max.1000 mm ; Min.200mm
Packing roll width	750mm
Packing sheets weight	70-100g/m2
Packing sheets grade	high-grade copy paper, high-grade office paper, high-grade offset paper etc.
Design speed	Max 25 reams/min
Operation Speed	Max 18 reams/min
Packing condition	no speed variations, no breaks, cut all the paper at one time and qualified packing paper.
Driving	AC Servo Precision Control
Main power supply	3*380V /50HZ( or as required)
Voltage	220V AC /24V DC (or as required)
Power	18KW
Compressing air consumption	250NL/min
Air compressor	6bar

Box wrapping part

Packing Paper Width	Gross width:310mm';net width :297mm
Box machine specification	5 packages/box; 8 packages/box; 10 packages/box
Carton specification (Reference)	430mm315mm300mm(10 packages) /315220300mm(5 packages)
Packing sheets grade	high-grade copy paper, high-grade office paper
Design speed	Max 5-10 boxes/min
Operation Speed	Max 5-7 boxes/min
Packing condition	Be qualified A4 paper(297mm*210mm), the ream paper height 45mm-55mm; carton specifications qualified.
Driving	AC servo driving
Main power supply	3*380V /50HZ
Voltage	220V AC /24V DC
Power	(approm) 16KW
Compressing air consumption	(approm) 300NL/min
Air pressure	4.5bar
