Synchro-fly High Speed Sheeter Machine

CHM series double knife sheeter adopts advanced design of synchronic rotary which are driven directly by high power AC servo motor with high accuracy and clean cut.This machine is widely used for cutting cardboard, coated paper, Kraft paper, culture paper, art paper, duplex,packaging paper, etc. up to 1000gsm.







Model	CHM-SGT1400
1. Type of cutting	Top blade and bottom blade rotary
2. Weight of paper	200-1000 GSM
3. Reel diameter	Max 1800mm(71")
4. Finished width	Max 1400mm(55")
5. Finished sheet-Length	Min.450-Max.1650 mm
6. Num. of rolls cutting	2 rolls
7. Cutting accuracy	±0.5mm
8. Max. speed of cutting	300cuts/min
9. Max. cutting speed	300m/min
10. Requirement of the air pressure	0.8MPa
11. Voltage	AC380V/220Vx50Hz
12. Total power	88KW





According to CHM Machiery, which are mainly used for paper cutting in Paper Mill, Printing House and etc.

Mainly process including Unwinding-Feeding-Cutting-Conveying-Collecting .









1.This type of equipment is specially developed for thick paper. The upper and lower knives rotate and cut. The maximum speed is 300m/min. The grammage range for slitting is 100 - 1000g.

2.The paper slit out has no paper fuzz and is very clean. It can be directly used on the printing machine, reducing secondary processing and costs. Therefore, it is being adopted by more and more users.

3.It can realize simultaneous slitting of multiple rolls, improve work efficiency, increase production capacity, and well meet the production capacity requirements of customers.





1.The three factories in Guangdong, Shandong and Jiangsu have a total area of nearly 140,000 square meters, becoming the world's second largest sheeting machine manufacturer with independent production capacity;

2.Large production capacity and wide market share;

3.The most professional counterparts in the country, with independent research and development, innovation ability, is the national Slitter standard setter- we are professional, dedicated;

4.Pursuing the quality of "honesty first" forever;

5.We have a professional technical and after-sales service team; we always provide"whole life cycle service" for the equipment; we provide solutions for equipment upgrading, maintenance, paper processing, post press processing, printing industry peripheral equipment, and provide high-quality services for different brands of equipment.





1.How to solve the static electricity problem generated during the slitting process?

Our machine is equipped with a static electricity elimination system. It can alleviate the static electricity generated during the slitting process of paper and prevent the paper from sticking together.



2.Are the maintenance and operation methods of your machine simple?

Our machine has very stable performance and a long service life of the product, so the maintenance is also very convenient. Secondly, the machine is fully automatic and easy to operate. It only requires a few operators to complete the operation.



3.What about the safety performance of your machines?

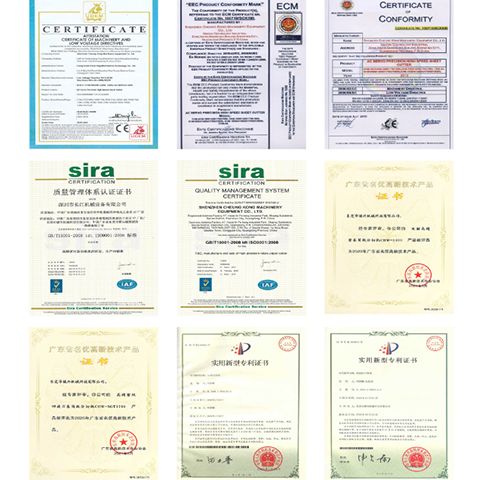

Our machines will undergo multiple inspections before being transported to customers, and the products have qualified certificates. In addition, safety factors are also considered in the design of the machines. For example, there will be a safety cover for the cutter head. If the safety cover is accidentally lifted, the machine will stop running.
