CHM-SGT1400/1700/1900 Dual Rotary Paper Sheeter
CHM-SGT1400/1700/1900 double rotary series sheeter machine adopts upper and lower blades to cut in a rotary manner. This slitting method will make the paper cut cleaner and free of paper wool. Especially for printing plants, the paper cut by this machine can be directly put into the printing press, which greatly saves costs.
Product Introduction
Products Description
CHM1400/1700/1900 dual rotary series sheeter machine adopts upper and lower blades to cut in a rotary manner. This slitting method will make the paper cut cleaner and free of paper wool. Especially for printing plants, the paper cut by this machine can be directly put into the printing press, which greatly saves costs.
Main Technical Parameter
|
Model |
CHM-SGT1400 |
CHM-SGT1700 |
CHM-SGT1900 |
||
|
1. Type of cutting |
Top blade and bottom blade rotary |
Top blade and bottom blade rotary |
Top blade and bottom blade rotary |
||
|
2. weight of paper |
200-1000 GSM |
200-1000 GSM |
200-1000 GSM |
||
|
3.reel diameter |
Max 1800mm(71") |
Max 1800mm(71") |
Max 1800mm(71") |
||
|
4. Finished width |
Max 1400mm(55") |
Max 1700mm(66.9") |
Max 1900mm74.8") |
||
|
5. Finished sheet-Length |
Min.450-Max.1650 mm |
Min.450-Max.1650 mm |
Min.450-Max.1650 mm |
||
|
6. Num. of rolls cutting |
2 rolls |
2 rolls |
2 rolls |
||
|
7. Cutting accuracy |
±0.5mm |
±0.5mm |
±0.5mm |
||
|
8. Max. speed of cutting |
300cuts/min |
300cuts/min |
300cuts/min |
||
|
9. Max. cutting speed |
300m/min |
300m/min |
300m/min |
||
|
10. Requirement of the air pressure |
0.8MPa |
0.8MPa |
0.8MPa |
||
|
11. Voltage |
AC380V/220Vx50Hz |
AC380V/220Vx50Hz |
AC380V/220Vx50Hz |
||
|
12. Total power: |
93KW |
93KW |
120KW |
||
|
13. Output |
The real output depend on the material, and the weight of the paper, and right operate process |
The real output depend on the material, and the weight of the paper, and right operate process |
The real output depend on the material, and the weight of the paper, and right operate process |
Products Display picture
Youtube video
CHM-SGT1900 double rotary sheeter machine
CHM-SGT1400 double rotary sheeter Machine Drawing
CHM video and Pictures
Our advantages
why choose us?
Since our establishment in 2004, we have always insisted on providing users with the best products and services.
The three factories cover an area of 140,000 square meters.
Our machines are exported to more than 80 countries and regions, and we have many well-known partners.
one-stop solution
professional team
high qualit
Workshop Picture
Customer picture
Customer factory machine video--CHM-SGT1400/1700 Sheeter machine

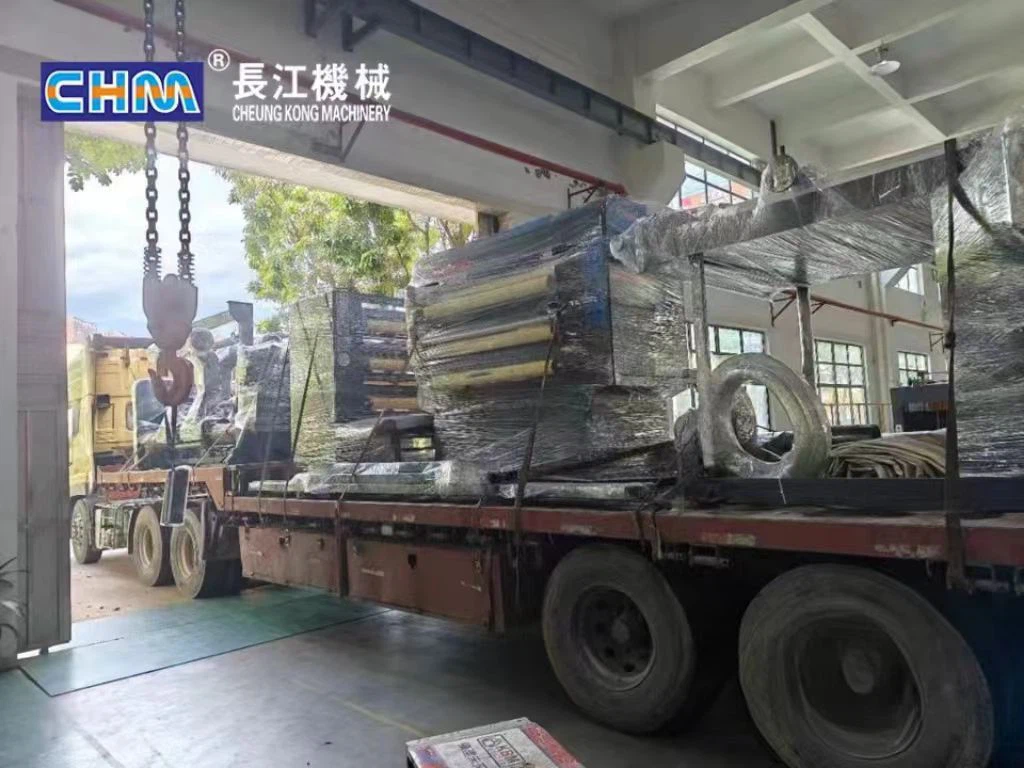

Shipment Picture
our partners
CHM,the professional paper rotary sheeter manufacturer and the leading paper sheeter solutiuon provider in China.
Our address
Dongguan City, Guangdong Province, China
Phone /WhatsApp Number
＋86 17371066702
chm007@szchm.com
FAQ
Q: What kind of materials can cut on this paper sheeter machine?
A: It can sheet cut paper from 60gsm to 1000gsm paper, the range thickness is most guaranteed, but if the cutting paper more than 200gsm it is the best choice.
Q: What kind of data you need to provide before get a quotation?
A: It necessary to know: What is max roll width, paper thickness range ( gsm or thickness), how many rolls need to sheet cutting together, speed you required etc.
Q: How long can you finish the paper sheeter machine production after we place the order?
A: Normally it takes 40-50 days for the sheeter paper machine production, in specail cases, we can make earlier delivery in case you have any quick delivery requirement.
Q: Can you ship the machine to our factory?
A: We can ship the paper sheeter machine to everywhere around the world, the machine will be well packed and loaded in container, mainly it is go to your nearest port,but also can delivery to your factory address if there is any need.
Q:What quality guarantee you provided for your sheeters?
A: Our paper sheeters have one year quality guarantee within one year after installed in buyer factory. After the warantee time, we will just charge the parts cost only minium of production cost in case need. All the machines have life-time maintenance and with free technical support.
