A5 Cut Size Sheeting And Packaging Production Line
CHM High capacity A5 cut size sheeting and packaging production line adopts the most advanced Twin Rotary Knife Synchronize Sheeting technologies.Capable of fully automatic ream and box wrapping.
Product Introduction
A5 cut size sheeting and packaging production line Description
CHM-A5-6 High capacity fully automatic A5 cut size sheeting and packaging production line includes cutting+ream wrapping+box packaging+robot stacking. It adopts the most advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping.
How It Works?
Unwinding: Paper is unrolled from large jumbo rolls.

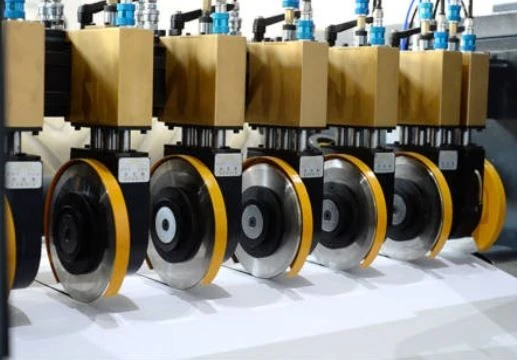

Cutting: The paper passes through a cutting unit, typically with twin rotary knives, to precisely cut it into A5 sheets.
Control: A PLC-controlled system ensures the correct length and alignment using servo motors and sensors.
Packaging: The cut sheets are then conveyed to an automated packaging system that wraps them into reams or boxes
A5 cut size sheeting and packaging production line Specification
|
Paper Width |
: |
Gross width 900mm, net width 891mm |
|
Cutting numbers |
: |
6 cutting-A5 148.5mm (width) |
|
Paper roll's diameter |
: |
Max.Ф1500mm. Min.Ф600mm |
|
Paper core's diameter |
: |
3"(76.2mm)or 6"(152.4mm) or according to the clients' demand |
|
Packing Paper grade |
: |
High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
|
Paper weight |
: |
60-100g/m2 |
|
Sheet length |
: |
210mm ( specially design for A5 paper, the cutting length is 210mm) |
|
Ream amount |
: |
500 sheets Max. Height: 45-55mm |
|
Production speed |
: |
Max 0-200m/min(depends on different paper quality) |
|
Max. Numbers of cutting |
: |
952/min |
|
Output of the ream |
: |
46 reams/min |
|
Load of cutting |
: |
400g/m² (4×100g/m² ) |
|
Cutting accuracy |
: |
±0.2mm |
|
Cutting condition |
: |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
|
Main power supply |
: |
3*380V /50HZ |
|
Voltage |
: |
220V AC /24V DC |
|
Power |
: |
34KW |
|
Air consumption |
: |
300NL/min |
|
Air pressure |
: |
6 bar |
|
Edge cutting |
: |
2×10mm |
|
Safety standard |
: |
Design according the safety standard of China |
