CHM-1400/1700/1900 Precision High Speed Paper Sheeting Machine
CHM Brand high speed paper roll to sheeter cutting machine is the most cost effective choice compare with BW and Pasaban. This advanced paper sheeter machine is a servo-driven, high-speed, high precision and high-efficiency paper cutting machine. Capable on wide range of paper, board paper, art paper, kraft paper, etc... Widely used by printing, packaging and paper suppliers. The machine operates quickly and stably.
Product Introduction
CHM Brand high speed paper roll to sheeter cutting machine is the most cost effective choice compare with BW and Pasaban.
This advanced paper sheeter machine is a servo-driven, high-speed, high precision and high-efficiency paper cutting machine.
Capable on wide range of paper, board paper, art paper, kraft paper, etc... Widely used by printing, packaging and paper suppliers.
The machine operates quickly and stably.
The maximum speed can reach 300 mpm, and the cutting efficiency and precision are very high.
CHM-1400/1700/1900 Precision High Speed Paper Sheeting Machine Video
CHM-1400/1700/1900 Precision High Speed Paper Sheeting Machine Parameter
|
Model |
CHM-1400 |
CHM-1700 |
CHM-1900 |
|
1. Type of cutting |
Top blade rotary, bottom blade fixed |
Top blade rotary, bottom blade fixed |
Top blade rotary, bottom blade fixed |
|
2. weight of paper |
60-550 GSM |
60-550 GSM |
60-550 GSM |
|
3.Reel diameter |
Max 1800mm (71") |
Max 1800mm (71") |
Max 1800mm (71") |
|
4. Finished width |
Max 1400mm |
Max 1700mm |
Max1900mm |
|
5.Finished sheet-Length |
Min.450-Max.1650 mm |
Min.450-Max.1650 mm |
Min.450-Max.1650 mm |
|
6. Cutting accuracy |
±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
|
7. Max.speed of cutting |
300cuts/min |
300cuts/min |
300cuts/min |
|
8. Max.cutting speed |
300m/min |
300m/min |
300m/min |
|
9. Requirement of the air pressure |
0.8MPa |
0.8MPa |
0.8MPa |

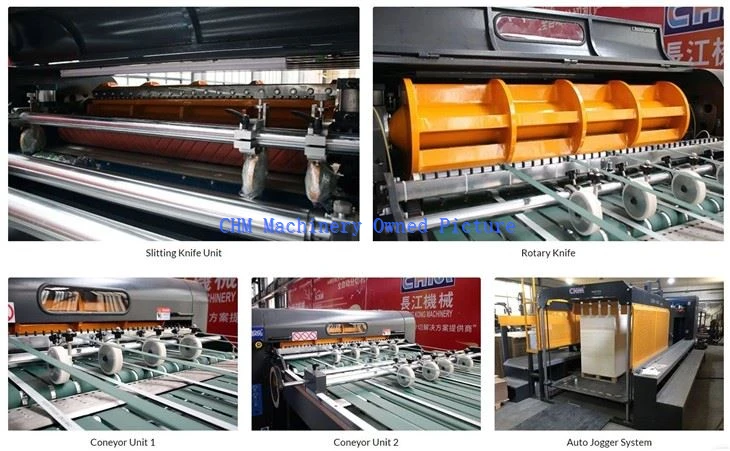

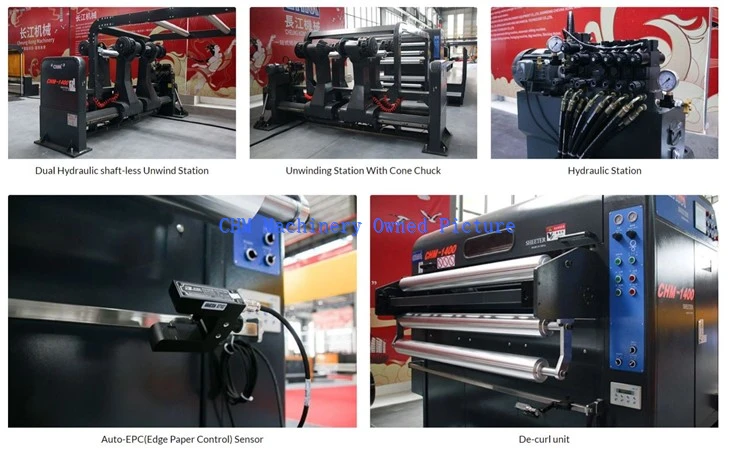

CHM-1400/1700/1900 Precision High Speed Paper Sheeting Machine Main working parts
CHM paper sheeter machine advantages
Precise cutting accuracy
Low production cost
Minimum workforce
Consistent performance
Higher profitability & longer life
Easy to operate & low in maintenance
CHM Machinery advantages
1. CHM owns three production base in China and covering a big area.
2 .Own the second-biggest facility in the world, nearly 150,000 square meters.
3 .As the professional manufacturer of paper sheeting machine, owns the best R&D team and highest number of patent,more than 110 item and honor.
4. CHM has a development history of more than 20 years and has certain experience and popularity.
5. CHM owns the best team especially the international standard after-sales team.
CHM Machinery's Partners
CHM Paper Sheeter Machine has been chosen by over 10000+ companies all over the world. Sun Paper, Chenming Paper, APP(Sinar group), and YUTO Packaging Technology are our regular customers. These are part of the video in the customer's factory. If you are interested, please contact us for your paper cutting solution.
CHM Machinery's Honors
Production base
FAQ
Q: What are the delivery times for spares?
A: At CHM, we strive to offer our customers the spares they need at a low price, high quality and in the shortest possible time. Our machines generally have a very long lifetime and it is not always easy to offer spares quickly for machines older than twenty years, as many of their components can be obsolete. However, we can always find the best possible solution.
Q: Can you provide remote assistance?
A: Minimizing the impact on customer production is very important to us. We are able to solve 85% of the problems occurring during the lifetime of a machine with a simple and quick online connection. This service is increasingly demanded internationally and prevents avoidable downtimes, greatly reducing maintenance costs.
Q: I would like to visit your factory, where is your factory located?
A: Our factory is located Dongguan city, near Shenzhen Airport and Guangzhou Airport. Our factory addresses are as below: DONG GUAN CHUN HING MECHANICAL TECHNOLOGY CO.,LTD No.2 Qiaotai Road,West Road of Qiaoxin, Qiaotou Town, Dongguan City If you are the first time to China, you can also contact Ms.Flora to ask for help.
Q: How about the warranty?
A: We provide a year's warranty (except for wearing parts).
Q: Are you manufacture factory or a trading company?
A: We are the second largest manufacturer of paper roll cutting machines in the world. We have three production bases nearly 150,000 square meters. Annual output value $50 million.
Q: Can you offer customized design services?
A: Yes, we have a strong technical team and can customize for you according to your requirements.
Q: Do you offer service for installation?
A: yes, we can offer installation service. We can arrange for our engineer to install the machine and teach your employees how to operate and maintain it. We also have some cooperating abroad agents who can install the machine.
Q: What can I do if I have a specific need but I don't know which machine is best for me?
A: These are the challenges we enjoy the most. Describe your need to us directly via chm05@szchm.com or by WhatsApp at +8615229284782 and we will make you a technical and economic recommendation specifically for your business.
