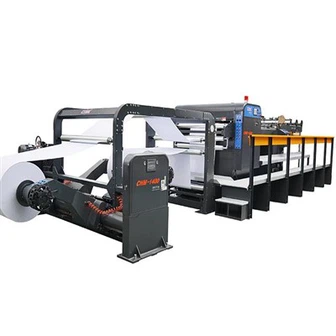

Sheeter Machine Hamburg Paper Sheeter Machine
Single Rotary Servo Precision High Speed Paper Sheeter, A servo-driven high speed, high precision and high efficiency paper sheeter. Capable on slitting and cutting 60-550g/m2 wide range of paper: board paper, offset paper, art paper, Kraft paper, etc.
Product Introduction
Single Rotary Servo Precision High Speed Paper Sheeter, A servo-driven high speed, high precision and high efficiency paper sheeter. Capable on slitting and cutting 60-550g/m2 wide range of paper: board paper, offset paper, art paper, Kraft paper, etc. Widely used by printing house, packaging and paper suppliers, paper mill... we also have 4 rolls, 6 rolls, 8 rolls type for thin paper, like newsprint, offset paper...
youtube
|
Model |
CHM-1400 |
|
1. Type of cutting |
Top blade rotary, bottom blade fixed |
|
2. weight of paper |
60-550 GSM |
|
3..reel diameter |
Max 1800mm (71") |
|
4. Finished width |
Max 1400mm (55") |
|
5. Finished sheet-Length |
Min.450-Max.1650 mm |
|
6. Num.of rolls cutting |
2 rolls |
|
7. Cutting accuracy |
±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
|
8. Max.speed of cutting |
300cuts/min |
|
9. Max.cutting speed |
300m/min |
|
10. Requirement of the air pressure |
0.8MPa |
|
11. Voltage |
AC380V/220Vx50Hz |
|
12. Total power: |
27KW |
|
13. Accuracy of the roller paper sheet |
±0.5mm(L<1000mm);±0.1% (L≥1000mm) ±0.1%(accelerate or decelerate). This depend on machine stable and operation when cutting. (cutting one paper roll, the cutting length is right ) |
|
14. Output |
The real output depend on the material, and the weight of the paper, and right operate process |
