Automatic Stacking Machine

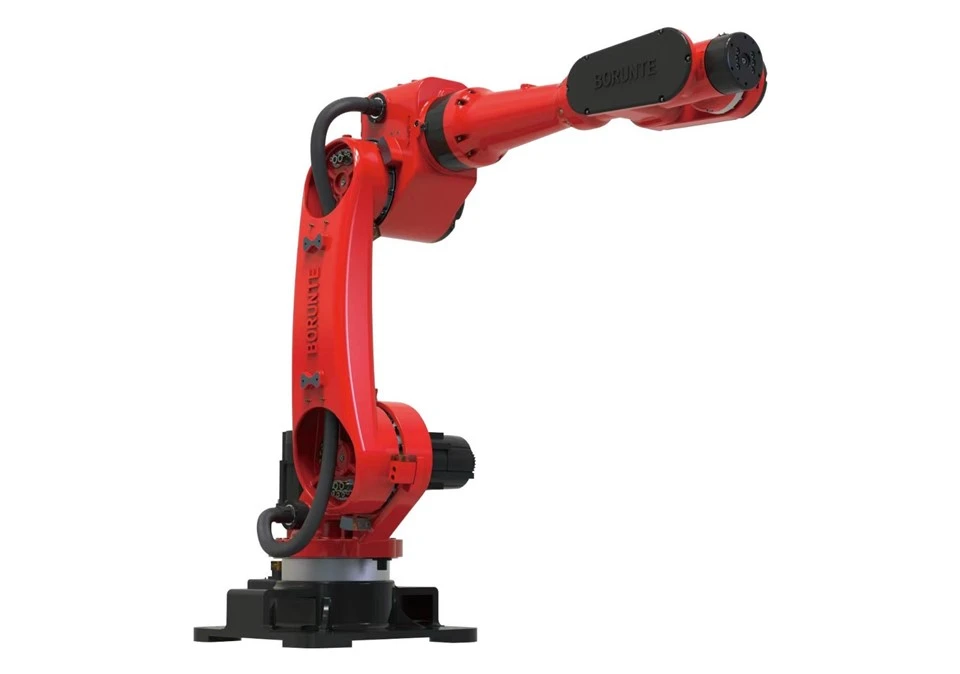

This robot is a six axis robot that developed for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2550mm. The maximum load is 50KG.It has six degrees of flexibility. Suitable for loading and unloading, assembling, molding, stacking etc.
Product Introduction
This robot is a six axis robot that developed for some monotonous, frequent and repetitive long-term operations or operations in dangerous and harsh environments. The maximum arm length is 2550mm. The maximum load is 50KG.It has six degrees of flexibility. Suitable for loading and unloading, assembling, molding, stacking etc.This machine has many advantages.The protection grade reaches IP54.Water and dust resistant.In addition,The repeat positioning accuracy is ±0.1mm.

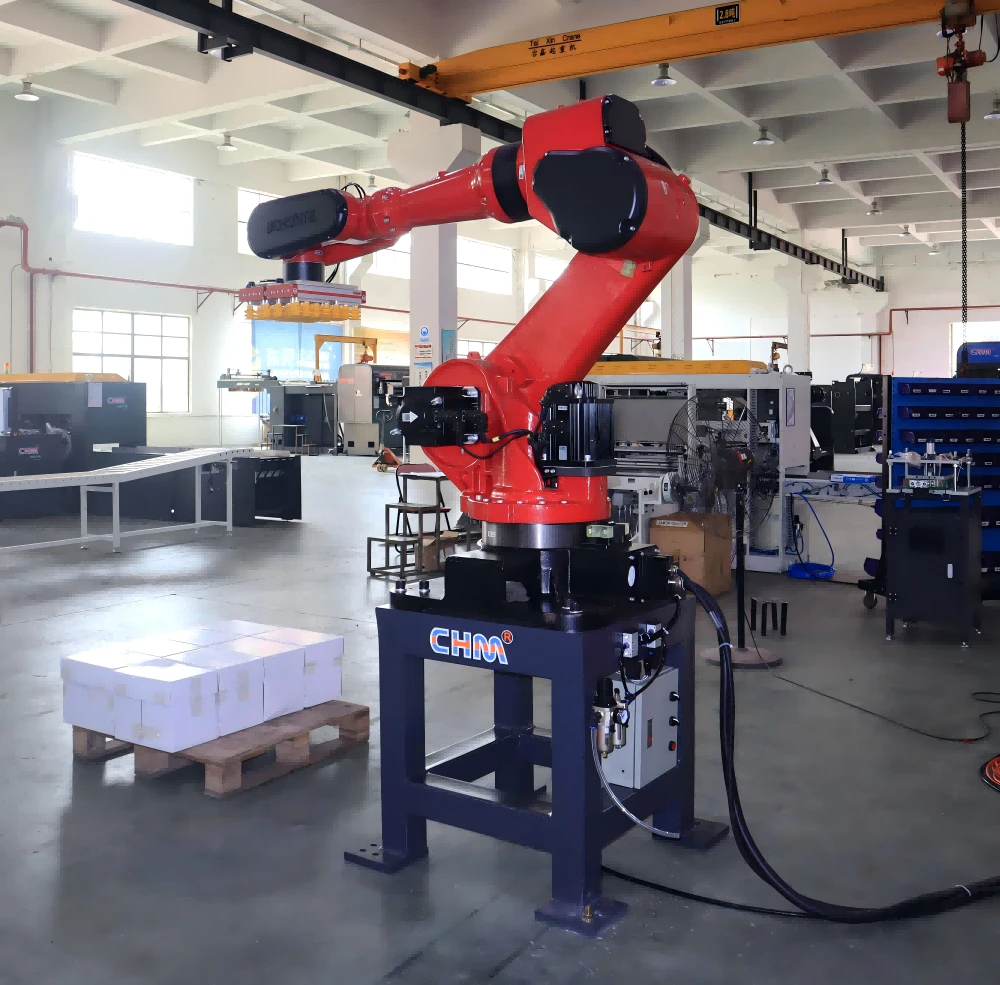

Working mode: robot stacking.
Packing specification of stacked cartons:
(1)A4 paper specification: suitable for 5 reams / 8 reams / 10 reams per box.
(2)A3 paper specification: suitable for 4 reams / 5 reams per box.
(3)The Robot Arm speed meets the requirements of the front cut size sheeting
and wrapping machine and ream paper box wrapping machine.
Stacking machine parameter
|
Max. load |
120kg(maximum weight of suction cup: 25kg / box) |
|
|
Max. radius |
3150mm |
|
|
Handling capacity |
6 Round trip/min |
|
|
Vacuum sucker |
400*277 |
|
|
Repeat positioning accuracy |
±0.1mm |
|
|
Power source |
16.7KVA |
|
