A4 Paper Cutting Slitting Slitter Machine
CHM's small capacity A4 cutting and packaging machines can process approximately 12 reams per minute. We also have larger capacity machines available.
Product Introduction

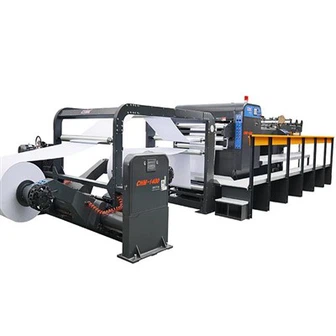

CHM's small capacity A4 cutting and packaging machines can process approximately 12 reams per minute. We also have larger capacity machines available. The CHM-A4-4 model machine can produce up to 37 reams per minute.With high speed, high quality, tight packing, and easy to operate.
youtube
Product parameter
|
Paper Width |
Gross width 850mm, net width 840mm |
|
Cutting numbers |
4 cutting-A4 210mm (width) |
|
Paper roll's diameter |
Max.Ф1500mm. Min.Ф600mm |
|
Paper core's diameter |
3"(76.2mm)or 6"(152.4mm) or according to the clients' demand |
|
Packing Paper grade |
High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
|
Paper weight |
60-100g/m² |
|
Sheet length |
297mm (specially design for A4 paper, the cutting length is 297mm) |
|
Ream amount |
500 sheets Max. Height: 45-55mm |
|
Production speed |
Max 0-250m/min (depends on different paper quality) |
|
Max. Numbers of cutting |
841/min |
|
Output of the ream |
27 reams/min |
|
Load of cutting |
400g/m2 (4×100g/m²) |
|
Cutting accuracy |
±0.2mm |
|
Cutting condition |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
|
Main power supply |
3*380V /50HZ |
|
Voltage |
220V AC /24V DC |
|
Power |
32KW |
|
Air consumption |
300NL/min |
|
Air pressure |
6 bar |
|
Edge cutting |
2×10mm |
|
Safety standard |
Design according the safety standard of China |
Production process
Product details
Product details
